Name: ROG CROSSHAIR X670E GENE - X670/AM5/DDR5/mATX
Brand: Asus
Price: 449.99 EUR
Availability: InStock

Accueil

Carte mère

Asus

Asus ROG CROSSHAIR X670E GENE

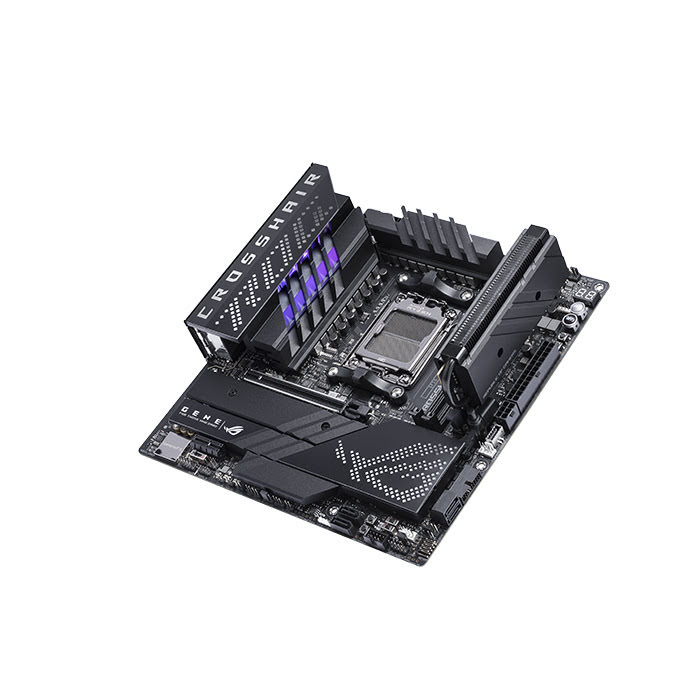

Asus ROG CROSSHAIR X670E GENE Micro-ATX - Carte mère Asus - 2

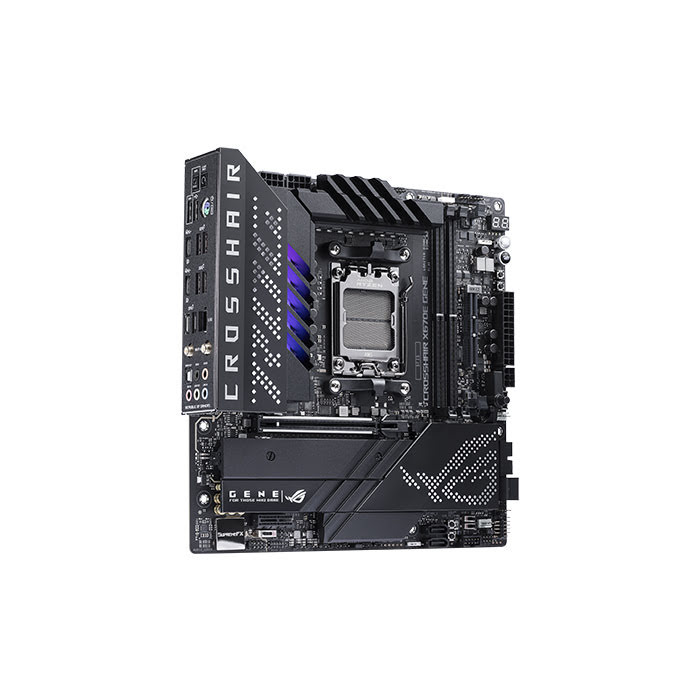

Asus ROG CROSSHAIR X670E GENE Micro-ATX - Carte mère Asus - 3

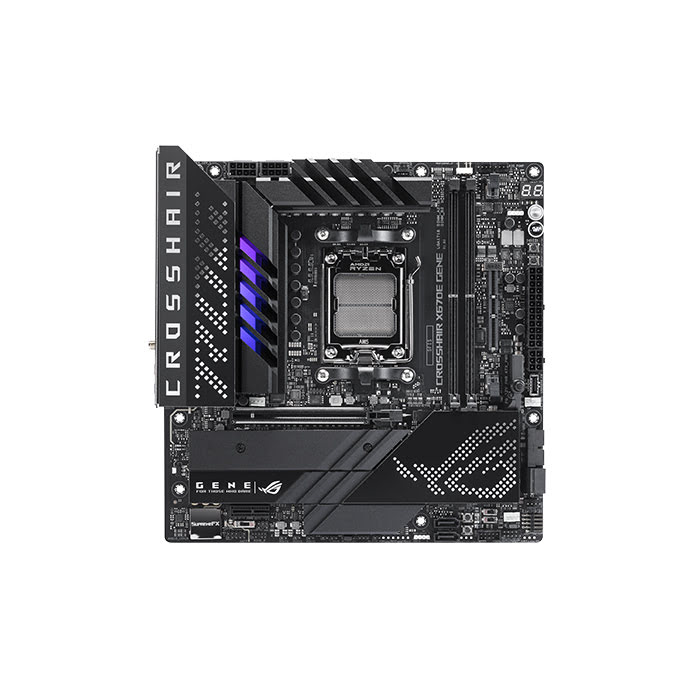

Asus ROG CROSSHAIR X670E GENE Micro-ATX - Carte mère Asus - 4

Photos non contractuelles.

Partager la fiche

449€⁹⁹

150€x3 sans frais

Livraison Offerte

Livraison offerte

Ajouter au panier

WEB

Dernière pièce

Livraison chez vous :

Standard : lundi 29 avr.

Express : vendredi 26 avr.

Relais colis : lundi 29 avr.

Magasin

EN STOCK

En stock dans 1 Magasin

STE GENEVIEVE DES BOIS

Dernière pièce

VILLENEUVE D'ASCQ

Pas de stock

Voir les dispos magasin

Partager la fiche

Caractéristiques principales

•Utilisation : Gamer"
•Utilisation : Pro"
•Utilisation : Multimédia"
•Utilisation : Art Graphique"
•Socket : AMD AM5"
•Format Carte-mère : Micro-ATX"
•Connectivité : Wifi"
•Nombre de barrettes RAM : 2"
•Norme Mémoire RAM : DDR5"
•LED : RGB"
•Nombre de Port M2 : 3"
•Chipset : AMD X670"
•Capacité RAM : 64Go"
•Fréquence RAM : 5000MHz PC40000"
•Fréquence RAM : 4800MHz PC38400"
•Fréquence RAM : 5400MHz PC43200"
•Fréquence RAM : 5800MHz PC46400"
•Fréquence RAM : 6000MHz PC48000"
•Fréquence RAM : 6200MHz PC49600"
•Fréquence RAM : 6400MHz PC51200"
•Fréquence RAM : 5200MHz PC41600"
•Fréquence RAM : 5600MHz PC44800"
•Vidéo intégrée : Sans GPU"
•Interface Disque : SATA III"
•Interface Disque : M.2"
•Nombre de Port SATA : 4"
•Connecteurs carte mère : Connecteur standard"

Voir les détails techniques

Présentation

Asus ROG CROSSHAIR X670E GENE

AFFICHER LA SUITE

Voir tous les articles Asus

Voir les autres carte mère Asus

Détails Techniques

Détails techniques

Specifications
CPU	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
	* Refer to www.asus.com for CPU support list.
Chipset	AMD X670
Memory	2 x DIMM, Max. 64GB, DDR5
	6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports AMD EXTended Profiles for Overclocking (EXPO™)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
	* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics	2 x USB4® ports support USB Type-C® display outputs*
	* VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slot
	AMD X670 Chipset
	1 x PCIe 4.0 x1 slot
	* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	AMD Ryzen™ 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280	(supports PCIe 5.0 x4 mode)
	GEN-Z.2_1 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4)**
	AMD X670 Chipset
	GEN-Z.2_2 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
	4 x SATA 6Gb/s ports
	*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
	**Performance may vary depending on the SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support site.
Ethernet	1 x Intel® 2.5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E
	2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5/6GHz frequency band*
	Bluetooth v5.2
	* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB	Rear USB (Total 10 ports)
	2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
	6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
	1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	*To support 60W, please install the power cable to the 6-pin PCIe Graphics
	Card connector or else only 27W can be supported.
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
	Impedance sense for front and rear headphone outputs
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	Supports up to 32-Bit/384 kHz playback
	Audio Features
	SupremeFX Shielding Technology
	Savitech SV3H712 AMP
	Gold-plated audio jacks
	Rear optical S/PDIF out port
	Premium audio capacitors
	Audio cover

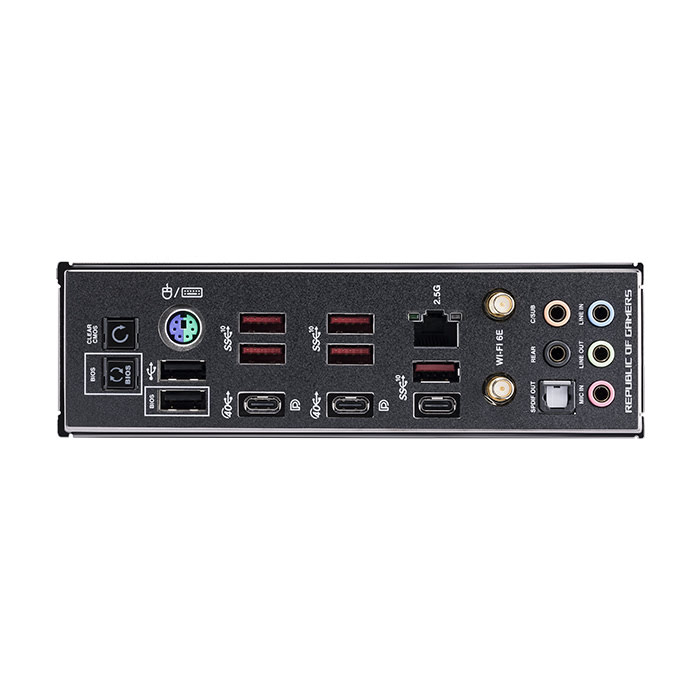

Back Panel I/O Ports	2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
	6 x USB 3.2 Gen 2 port(s) (5 x Type-A + 1 x USB Type-C®)
	2 x USB 2.0 ports (2 x Type-A)
	1 x Wi-Fi Module
	1 x Intel® I226-V 2.5Gb Ethernet port
	5 x Gold-plated audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack™ button
	1 x Clear CMOS button
	1 x PS/2 Keyboard/Mouse combo port
	Internal I/O Connectors Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	1 x 4-pin Chassis Fan header
	3 x 4-pin Full Speed Fan headers
	Power related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V Power connector
	1 x 6-pin PCIe Graphics Card connector
	Storage related
	1 x M.2 slots (Key M)
	1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
USB	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
	1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
	Miscellaneous
	1 x 80 Light Bar jumper
	2 x Addressable Gen 2 headers
	1 x Alteration Mode Switch
	1 x Aura RGB header
	2 x BCLK button
	1 x FlexKey button
	1 x 10-1 pin Front Panel Audio header (AAFP)
	1 x LN2 Mode jumper
	1 x Osc sence header
	12 x ProbeIt Measurement Points
	1 x ReTry button
	1 x RSVD switch
	1 x RSVD header
	1 x Safe Boot button
	1 x Slow Mode switch
	1 x Start button
	1 x 10-1 pin System Panel header
	1 x Thermal Sensor header
Special Features	Extreme OC Kit
	FlexKey button
	LN2 Mode
	Probelt
	ReTry button
	Safe boot button
	Start button
	Slow Mode
	Extreme Engine Digi+
	10K Black Metallic Capacitors
	MicroFine Alloy Choke
	ASUS Q-Design
	M.2 Q-Latch
	PCIe Slot Q-Release
	Q-Code
	Q-Connector
	Q-DIMM
	Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	Q-Slot
	ASUS Thermal Solution
	M.2 heatsink backplate
	M.2 heatsink
	VRM heatsink design
	ASUS EZ DIY
	BIOS FlashBack™ button
	Clear CMOS button
	ProCool II
	Pre-mounted I/O shield
	SafeSlot
	SafeDIMM
	Aura Sync
	Aura RGB header(s)
	Addressable Gen 2 header(s)
	Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
	Support: up to 60W charging*
	Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
	Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
	* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W
Software Features	ROG Exclusive Software
	GameFirst VI
	ROG CPU-Z
	ROG True Voltician
	Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
	Sonic Radar III
	DTS® Sound Unbound
	BullGuard Internet Security (1-year full version)
	ASUS Exclusive Software
	Armoury Crate
	AIDA64 Extreme (1 year full version)
	Aura Creator
	Aura Sync
	Fan Xpert 4 with AI Cooling II
	Power Saving
	Two-Way AI Noise Cancellation
	AI Suite 3
	TPU
	DIGI+ Power Control
	Turbo app
	PC Cleaner
	MyAsus
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	ASUS CrashFree BIOS 3
	ASUS EZ Flash 3
	ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	1 x RGB extension cable
	2 x SATA 6Gb/s cables
	ROG GEN-Z.2 with Heatsink
	1 x ROG GEN-Z.2 with heatsink
	1 x M.2 pad for ROG GEN-Z.2
	2 x M.2 screw package for ROG GEN-Z.2
	ROG True Voltician
	1 x ROG True Voltician
	4 x cables for ROG True Voltician
	Additional Cooling Kit
	1 x Thermal pad for M.2
	Miscellaneous

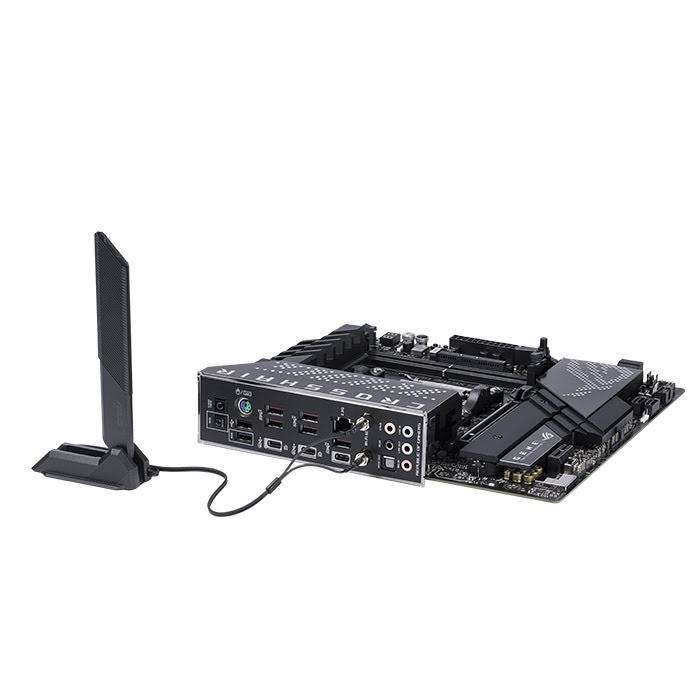

	1 x ASUS Wi-Fi moving antennas
	1 x Q-connector
	1 x M.2 Q-Latch package for M.2 backplate
	1 x ROG Graphics card holder
	1 x ROG key chain
	1 x ROG stickers
	1 x ROG thank you card
	1 x Rubber Package for M.2 backplate
Installation Media	1 x USB drive with utilities and drivers
Documentation	1 x User guide
Operating System	Windows® 11 64-bit
Form Factor	micro-ATX Form Factor
	9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
