| Contrôle d'Accès |
Source/Destination IP Based Access Control |
| Filtrage |
WEB Group Filtering/ URL Filtering/ Web Security |
| Inspection du protocole de résolution d'adresse ARP |
Sending GARP Packets/ ARP Scanning/ IP-MAC Binding |
| Défense contre les attaques |
TCP/UDP/ICMP Flood Defense/ Block TCP Scan (Stealth FIN/Xmas/Null)/ Block Ping from WAN |
| Standards et Protocoles |
IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q/ TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface |

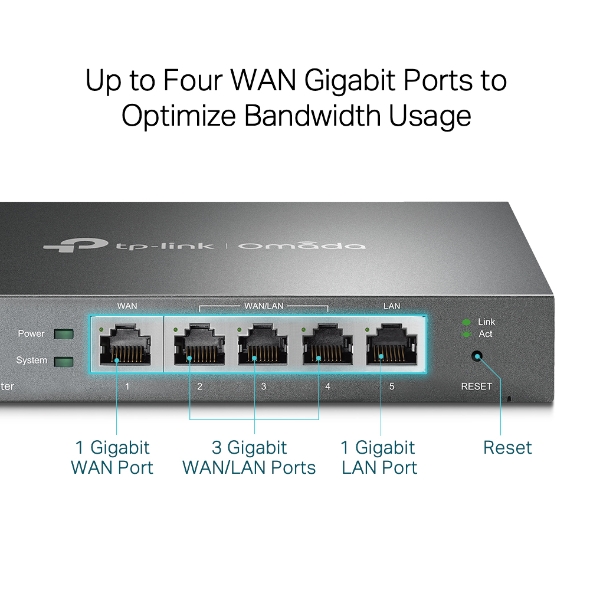

1 Fixed Gigabit WAN Port/ 1 Fixed Gigabit LAN Port/3 Changeable Gigabit WAN/LAN Ports |
| Interface réseau |
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)/ 100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)/ 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Bouton |
Reset Button |
| Alimentation |

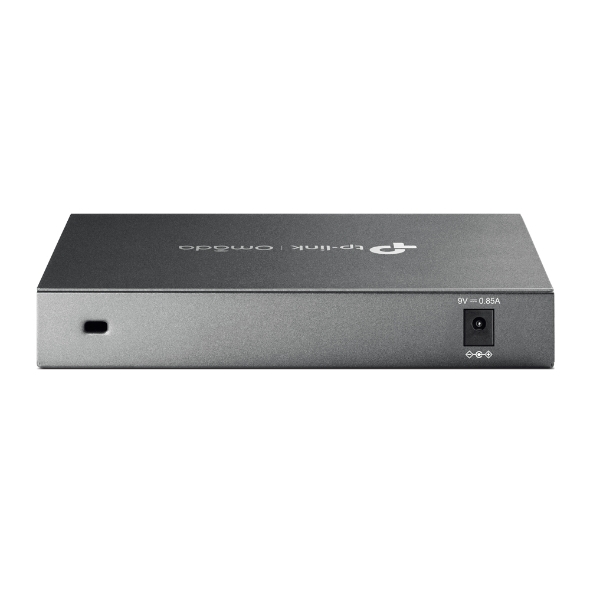

External 9V/0.85A DC Adapter |
| Flash |
SPI 16MB |
| DRAM |
128 MB |
| DEL |
PWR, SYS, WAN, LAN |
| Dimensions (LxPxH) |
158 × 101 × 25mm |
| Session concurrente |
25,000 |
| Bande passante VPN IPsec |
41.5 Mbps |
| Liste de contrôle d'accès ACL |
IP/Port/Protocol/Domain Name Filtering |
| Routage avancé |
Static Routing/ Policy Routing |
| Contrôle de bande passante |
IP/Port-based Bandwidth Control/ Guarantee & Limited Bandwidth |
| Répartition de charge |
Intelligent Load Balance/ Application Optimized Routing/ Link Backup (Timing§, Failover)/ Online Detection |
| NAT |
One-to-One NAT/ Multi-Net NAT/ Virtual Server/ Port Triggering/ NAT-DMZ/ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Sécurité |
SPI Firewall/ VPN Passthrough/ FTP/H.323/PPTP/SIP/IPsec ALG/ DoS Defence, Ping of Death/ Local Management |
| Session Limitée |
IP-based Session Limit |
